Let’s Talk About What to Watch Out For: B48 Engine Issues

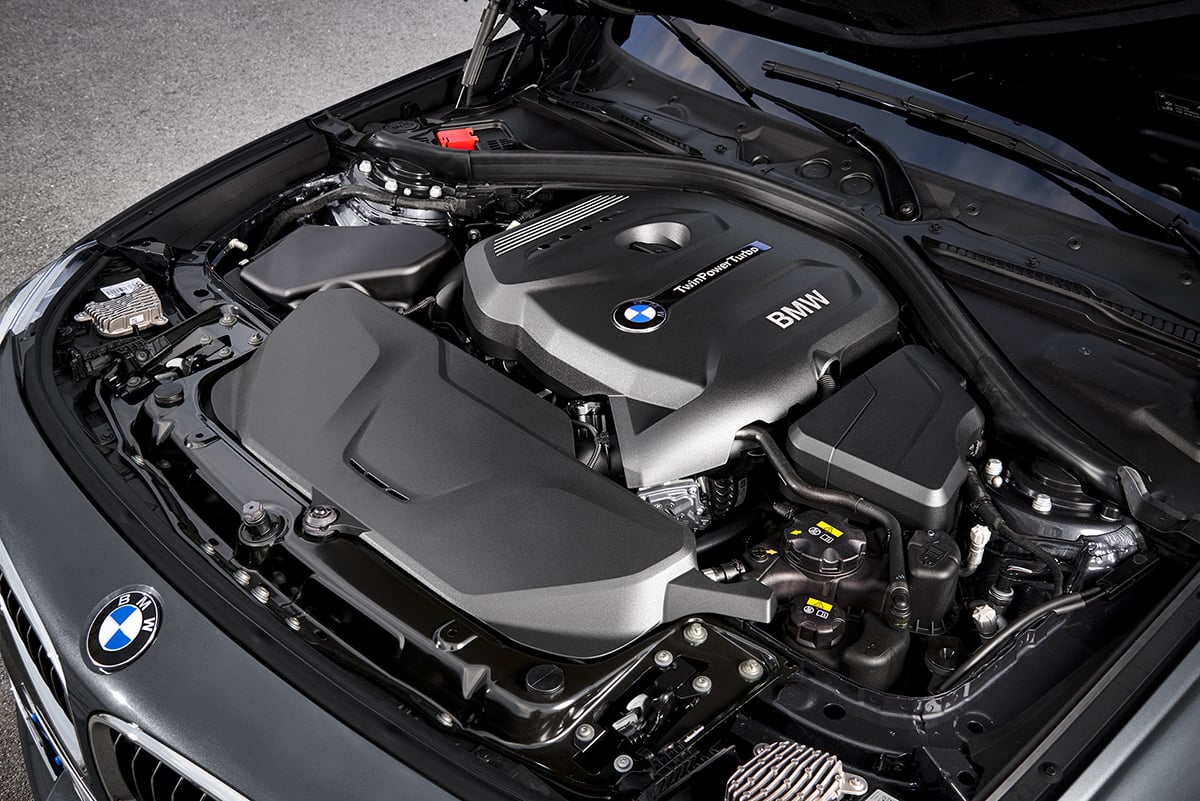

BMW’s B48 engine is a modern, turbocharged 2.0L inline-four that has become a core powerplant across the brand’s lineup since its debut in 2014. From the G20 330i to the G30 530e, and even in MINI and Toyota Supra 2.0 platforms, the B48’s versatility, power efficiency, and tunability make it one of BMW’s most successful modular engines.

However, while the B48 offers major improvements over its predecessor (the N20), it’s not immune to wear, age, or tuning-induced strain. Whether you’re running stock or pushing a Stage 2+ build, understanding the most common B48 engine issues can help prevent costly repairs and support reliable long-term performance.

🔧 1. Charge Pipe Weakness & Boost Leak Risks

Technical Overview:
The OEM B48 charge pipe is a plastic-reinforced unit that connects the turbo outlet to the throttle body. It is designed to handle factory boost levels (typically 0.9–1.2 bar), but under repeated thermal cycling and elevated boost pressure (seen in most tunes), it becomes a high-risk failure point.

Failure Mode:
Cracks or full separation at the couplers, resulting in sudden loss of boost pressure and underboost DTCs (e.g., 30FF, 120408).

Tuner's Solution:
Replace the factory pipe with a CNC-flanged aluminum or silicone charge pipe. Brands like VRSF, FTP Motorsport, and MST offer reliable replacements that not only withstand higher boost but improve internal flow and eliminate flex points.

🛠️ 2. PCV System Saturation & Blow-by Under Load

Technical Overview:
The Positive Crankcase Ventilation (PCV) system regulates internal pressure by routing vapors back into the intake. On tuned B48s, especially under sustained boost, the system becomes overwhelmed — leading to oil vapor saturation, valve fouling, and in some cases, increased crankcase pressure.

Failure Mode:
Oil residue at the back of the valve cover, increased oil consumption, poor idle, or smoke under acceleration.

Tuner's Solution:
Install a catch can to separate oil from the blow-by gas before it re-enters the intake system. For high-boost builds, consider a PCV reroute kit that separates crankcase ventilation from intake vacuum entirely for better engine longevity.

⚡ 3. Ignition System Wear (Coils & Plugs)

Technical Overview:
The B48 ignition system uses direct spark ignition with Bosch or Delphi coils. Higher cylinder pressures from tuning increase spark demand, which shortens the lifespan of both plugs and coils.

Failure Mode:
Misfires under load (especially at full boost), engine hesitation, or “check engine” light with misfire codes (e.g., 140001).

Tuner's Solution:
For tuned setups, we recommend:

  • Switching to 1-step colder spark plugs (e.g., NGK SILZKGR8C8ES or Bosch ZR5TPP33)

  • Regapping to 0.022"–0.024" for higher boost tolerance

  • Replacing coils every 40,000–50,000 km as preventative maintenance

💨 4. Carbon Buildup on Intake Valves (DI-Specific Issue)

Technical Overview:
Because the B48 uses direct fuel injection, fuel no longer washes over the intake valves, which leads to the gradual buildup of carbon deposits from oil vapors and PCV mist. This restricts airflow and can affect combustion efficiency.

Failure Mode:
Hard starts, rough idle, reduced performance, poor throttle response, and fuel economy decline.

Tuner's Solution:
Perform walnut shell blasting or chemical intake cleaning every 80,000–100,000 km. Using a catch can helps reduce carbon buildup, but does not eliminate the need for valve cleaning long-term.

⛽ 5. HPFP Limitations at High Tuning Levels

Technical Overview:
The High-Pressure Fuel Pump (HPFP) is tasked with delivering fuel at up to 350 bar for the direct injection system. On Stage 3+ or ethanol-blended builds, the factory pump can become a bottleneck, especially when demanding high injector duty cycles at WOT.

Failure Mode:
Lean codes (e.g., 118001), fuel cuts, inconsistent AFRs, or tuning limitations when increasing boost.

Tuner's Solution:
For builds requiring high fuel volume (e.g., hybrid turbo, E30, or flex fuel), upgrade to an aftermarket HPFP like Dorch Stage 1/2 or Precision Raceworks. Combine with ECU and fuel system tuning to maintain safe lambda across the rev range.

🌡️ 6. Oil Temperature Management & Heat Soak

Technical Overview:
The B48 features an integrated oil-to-water heat exchanger. While efficient for daily driving, it's prone to heat soak under sustained high-load conditions (track driving, hot climates, or prolonged dyno sessions).

Failure Mode:
Oil temps exceeding 125–130°C under load, triggering engine protection mode or reduced performance.

Tuner's Solution:

  • Thermostat bypass kits or larger auxiliary radiators can help control oil temps

  • For track cars, consider an external oil cooler retrofit

  • Always observe proper cool-down practices after hard driving (e.g., turbo timer or idle-down)

🧩 7. Minor Ancillary Failures (Valve Cover, Sensors, Expansion Tank)

Additional Points:

  • Valve Cover Gasket: May seep after 100,000 km, especially in Gen 1

  • MAP / TMAP Sensors: Oil contamination due to PCV residue can lead to erratic readings

  • Expansion Tank: Plastic units are prone to cracking with age or heat cycles

  • Water Pump & Thermostat: Still wear items — consider replacing around 130,000–150,000 km

🧠 Now Added: Other Known & Underrepresented B48 Issues

🧩 Timing Chain Wear (Early Gen 1 B48)

  • Why It Matters: Models from ~2015–2017 may experience premature chain stretch, similar to N20

  • Symptoms: Rattling at idle, cold start noise, timing-related error codes

  • Fix: Updated guides/tensioners or full timing chain replacement

💧 Coolant System Vulnerabilities

  • Why It Matters: Less common than N20, but thermostat or water pump can still fail

  • Symptoms: Overheating, coolant smell, low coolant warning

  • Fix: Replace proactively around 130–150k km or when signs of seepage appear

🛢️ Oil Consumption (Not Always PCV-Related)

  • Why It Matters: Even stock B48s can burn oil between intervals

  • Symptoms: Smoke under WOT, regular top-ups

  • Fix: Monitor usage. In extreme cases, inspect piston rings or valve seals

🔧 Turbo Wastegate Rattle or Wear

  • Why It Matters: Minor but annoying — becomes more apparent with age

  • Symptoms: Rattling at idle, inconsistent boost delivery

  • Fix: Wastegate re-tensioning or turbo replacement if necessary

🚗 Engine Mount Wear

  • Why It Matters: Tuned setups wear mounts faster, causing vibration

  • Symptoms: Harshness during shifts or at idle

  • Fix: Replace with OEM or polyurethane/hydraulic upgraded mounts

🚫 EVAP System / Carbon Canister Failures

  • Why It Matters: Often triggers CELs even in stock cars

  • Symptoms: Fuel smell, slow refueling, EVAP-related codes

  • Fix: Replace EVAP purge valve or charcoal canister

✅ Conclusion: A Reliable Platform When Built Right

The BMW B48 engine is a robust and well-engineered turbocharged unit, capable of handling increased power reliably — provided it's maintained and upgraded appropriately. Most issues arise from neglect, improper tuning, or pushing the engine without necessary supporting mods.

At RPM Performance, we’ve built and tuned dozens of B48-powered BMWs and have a deep understanding of how to make this engine deliver both power and longevity. Whether you're running Stage 1, full bolt-ons, or preparing for a Stage 3+ build, our team ensures your setup is supported, logged, and dialed in with precision.
